Universal Audio Apollo x16D Gen 2 | Dante-Integrated Flagship 16×16 Audio Interface

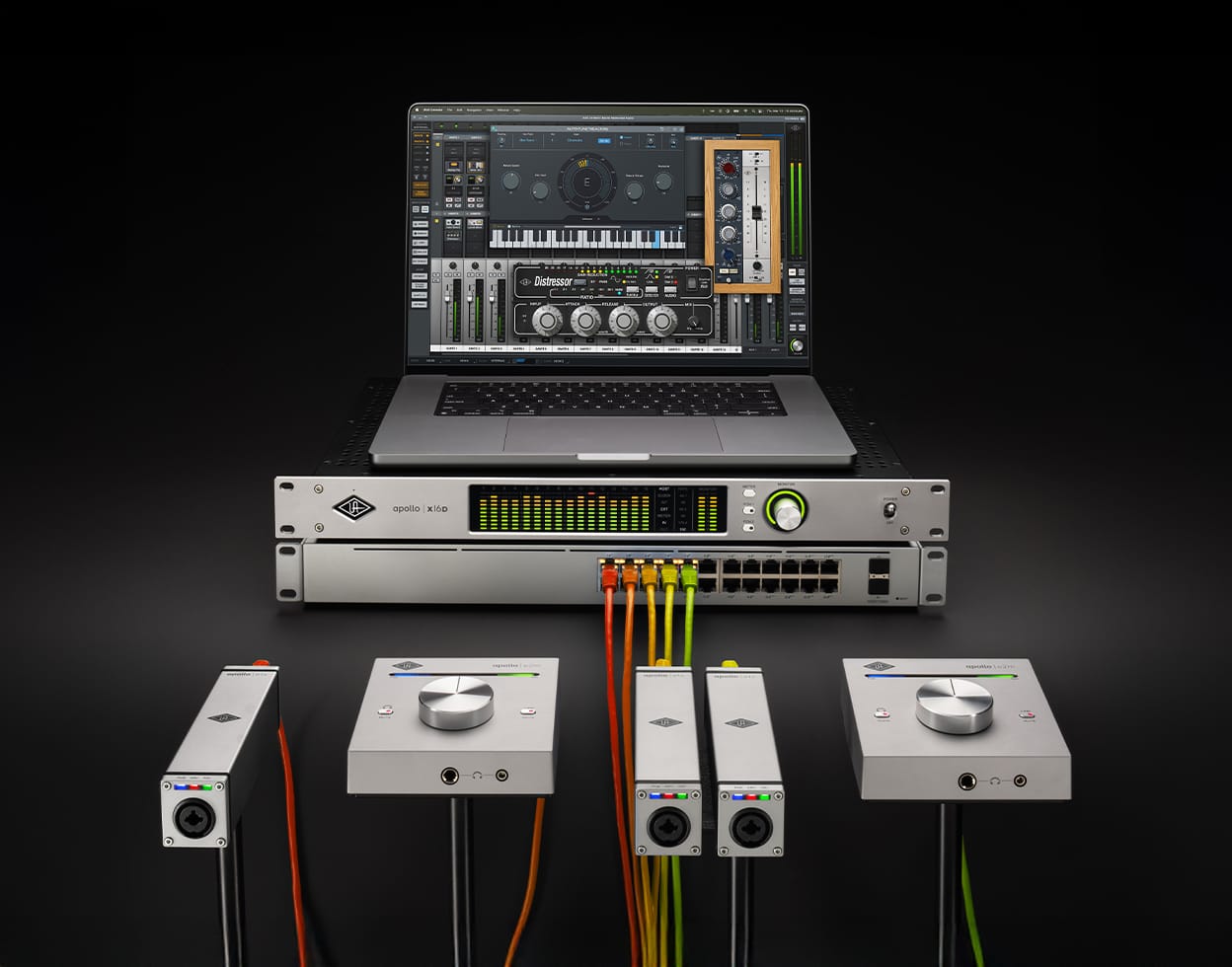

Apollo x16D Gen 2 combines 16×16 analog line I/O, UAD-2 HEXA realtime processing, and Dante® networking, and features Apollo X Gen 2 flagship A/D and D/A conversion for 24-bit/192 kHz fidelity with professional clocking. Whether in the studio, on stage, or across multi-room networked setups, x16D lets you run UAD plug-ins at low latency, bringing classic analog tone to any production. With both Thunderbolt and Dante, you can flexibly link multiple Apollo units, and use Apollo Monitor Correction powered by Sonarworks® to calibrate monitoring from stereo to immersive formats.
Key Features
- 16×16 analog line I/O (DB-25) with independent Monitor outputs — ideal for large preamp/expansion rigs
- Built-in UAD-2 HEXA Core DSP for near-zero-latency recording/mixing with UAD plug-ins

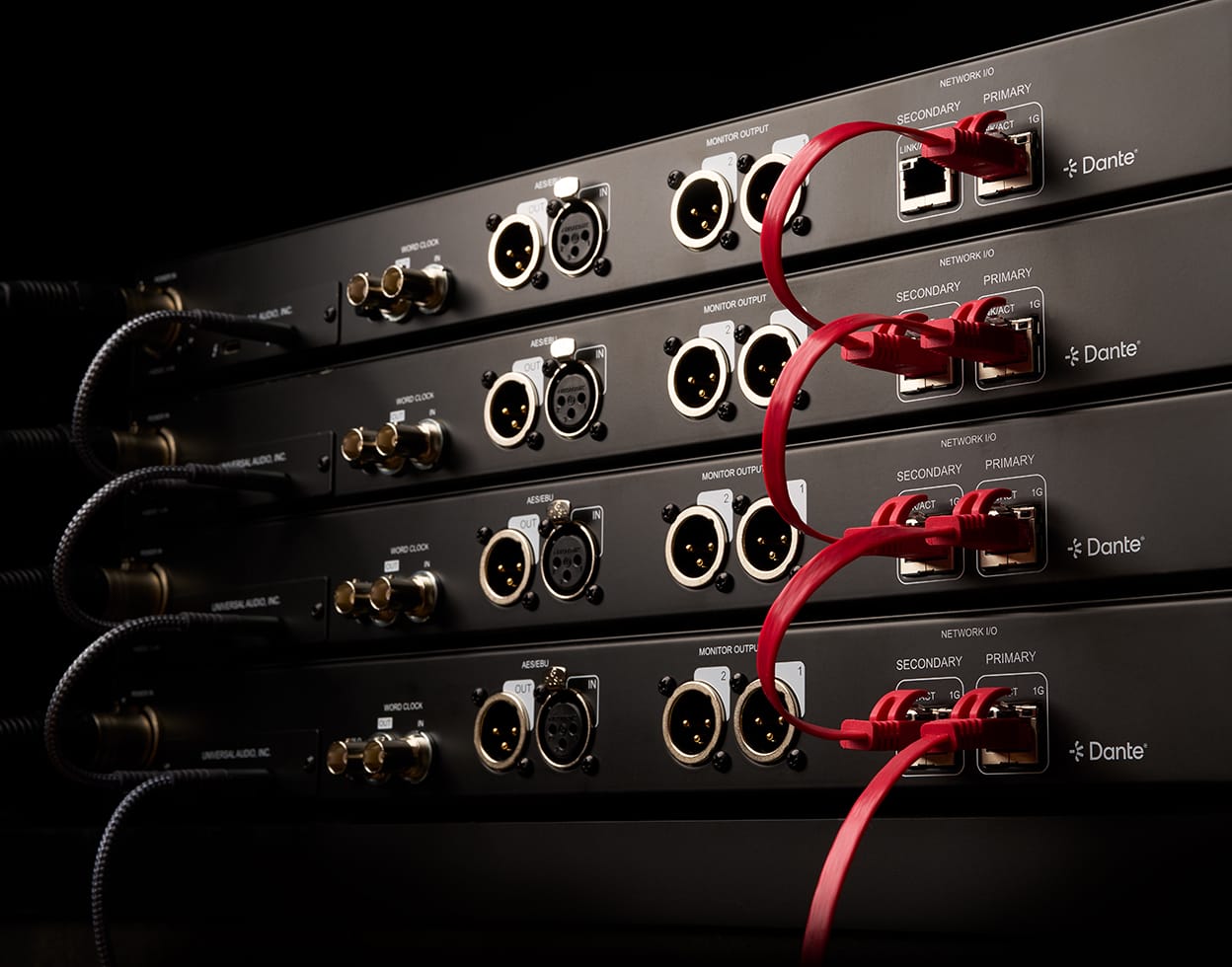

- Dual-port Dante® Primary/Secondary networking with redundancy and up to 64×64 channels (@ 96 kHz)
- 24-bit/192 kHz Apollo X Gen 2 conversion: flagship 133 dB dynamic range and ultra-low −129 dB THD
- Thunderbolt connectivity with multi-Apollo chaining and macOS/Windows integration
- Integrated monitor controller: ALT speaker switching, immersive monitoring, and built-in talkback
- Apollo Monitor Correction powered by Sonarworks®: automatic room/speaker calibration for stereo & immersive
- Professional digital/clock integration with AES I/O and Word Clock I/O
- Plug-In Scenes and MIDI control for instant live/studio recalls
- Workflows for Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and other immersive formats
- Rugged 1U rackmount chassis for studio and live systems
Specifications
| Type | Thunderbolt/Dante professional audio interface (16×16 analog line I/O) |
| Resolution | 24-bit, 44.1–192 kHz (Apollo X Gen 2 converters) |
| Analog I/O | 16×16 balanced line (DB-25), independent Monitor L/R outputs (1/4" TRS) |
| Dante Networking | Primary/Secondary dual ports (RJ45), up to 64×64 channels @ 96 kHz |
| Reference Level | Switchable pro reference levels, including +24 dBu headroom |
| Clocking | Internal ultra-low-jitter clock; Word Clock In/Out (BNC) |
| Computer I/O | Thunderbolt (USB-C) |
| UAD Processing | UAD-2 HEXA Core DSP (200+ UAD plug-ins, VST/AU/AAX 64-bit) |
| Mic Preamps | None (use external mic pres; compatible with Apollo e1x) |
| Included Software | Essentials+ Edition / Ultimate+ Edition plug-in bundles (per selected edition) |
| Chassis | 1U rackmount |
| Compatibility | macOS / Windows (compatible Thunderbolt connection & drivers required) |
| Power | Internal PSU, IEC AC input |
Essentials+ — Included Plug-Ins
-
Channel Strips & Preamps (6)
Century Tube Channel Strip
CS-1 Channel Strip
Helios Type 69 Preamp & EQ
Precision Channel Strip
UA 610-A Preamp & EQ
UA 610-B Preamp & EQ -
Compressors / Limiters (7)
Fairchild 670 Legacy
Teletronix LA-2A Classic Leveler
Teletronix LA-2A Gray Classic Leveler
Teletronix LA-2A Legacy Leveling Amplifier
Teletronix LA-2A Silver Classic Leveler
UA 1176LN Legacy
UA 1176SE Legacy -
Equalizers (6)
Helios Type 69 Legacy EQ
Pultec EQP-1A Legacy EQ
Pultec EQP-1A Passive EQ
Pultec HLF-3C Passive EQ
Pultec MEQ-5 Passive EQ
Pultec-Pro Legacy EQ -
Special Processing (4)
Auto-Tune Realtime Access
Oxide Tape Recorder
Precision Enhancer Hz
Verve Analog Machines Essential -
Instruments (1)
PolyMAX Synth -
Delay & Modulation (3)
Galaxy Tape Echo
Precision Delay Mod
Precision Delay Mod L -
Reverbs & Rooms (3)
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler -
Guitar & Bass (3)
Raw Distortion
Ampeg SVT-VR Bass Amplifier
Marshall Plexi Classic Amplifier
Ultimate+ — Included Plug-Ins
-
Channel Strips & Preamps (19)
API Preamp
API Vision Channel Strip
API Vision Legacy Channel Strip
Avalon VT-737sp Channel Strip
Century Tube Channel Strip
CS-1 Channel Strip
Helios Type 69 Preamp & EQ
LA-6176 Signature Channel Strip
Manley Reference Microphone Preamp
Manley VOXBOX Channel Strip
Neve 1073 Preamp & EQ
Neve 88RS Channel Strip
Neve 88RS Legacy Channel Strip
Precision Channel Strip
SSL E Series Channel Strip
SSL E Series Channel Strip Legacy
UA 610-A Preamp & EQ
UA 610-B Preamp & EQ
V76 Preamplifier
-
Compressors / Limiters (22)
API 2500 Stereo Bus Compressor
dbx 160 Compressor / Limiter
Empirical Labs Distressor
Fairchild 660 Compressor
Fairchild 670 Compressor
Fairchild 670 Legacy Compressor
Manley Variable-Mu Limiter Compressor
Precision Buss Compressor
SSL G Series Bus Compressor
SSL G Series Bus Compressor Legacy
Teletronix LA-2A Classic Leveler
Teletronix LA-2A Gray Classic Leveler
Teletronix LA-2A Legacy Leveling Amplifier
Teletronix LA-2A Silver Classic Leveler
Teletronix LA-3A Classic Leveler
UA 1176 Rev A Classic Limiter
UA 1176AE Classic Limiter
UA 1176LN Rev E Classic Limiter
UA 1176LN Legacy Limiting Amplifier
UA 1176SE Legacy Limiting Amplifier
UA 175B Classic Limiter Plug-In
UA 176 Classic Limiter Plug-In
-
Equalizers (17)
API 550A Parametric EQ
API 560 Graphic EQ
Cambridge EQ
Harrison 32C Channel EQ
Harrison 32C SE Channel EQ
Helios Type 69 Legacy EQ
Hitsville EQ
Manley Massive Passive EQ
Neve 1073 Legacy Classic Console EQ
Neve 1073SE Legacy Classic Console EQ
Precision Equalizer
Pultec EQP-1A Legacy EQ
Pultec EQP-1A Passive EQ
Pultec HLF-3C Passive EQ
Pultec MEQ-5 Passive EQ
Pultec-Pro Legacy EQ
Trident A-Range Classic Console EQ
-
Special Processing (21)
Auto-Tune Realtime X
Auto-Tune Realtime Advanced
Auto-Tune Realtime Access
Ampex ATR-102 Mastering Tape Recorder
Empirical Labs FATSO Jr. Tape Sim. & Compressor
Empirical Labs FATSO Sr. Tape Sim. & Compressor
Little Labs IBP Phase Alignment Tool
Little Labs Voice Of God Bass Resonance
Moog Multimode Filter
Moog Multimode Filter SE
Moog Multimode Filter XL
Oxide Tape Recorder
Precision De-Esser
Precision Enhancer Hz
Precision Enhancer kHz
Studer A800 Multichannel Tape Recorder
Thermionic Culture Vulture
Topline Key Finder
Topline Vocal Suite
Verve Analog Machines
Verve Analog Machines Essentials
-
Instruments (6)
Electra 88 Vintage Keyboard Studio
Moog Minimoog
Opal Morphing Synth
PolyMAX Polyphonic Synth
Ravel Grand Piano
Waterfall B3 Organ
-
Delay & Modulation (10)
Brigade Chorus Pedal
Cooper Time Cube MkII Delay
EP-34 Tape Echo
Galaxy Tape Echo
KORG SDD-3000 Digital Delay
MXR Flanger/Doubler
Precision Delay Modulation
Precision Delay Modulation Long
Studio D Chorus
Waterfall Rotary Speaker
-
Reverbs & Rooms (13)
AKG BX 20 Spring Reverb
Capitol Chambers
DreamVerb Room Modeler
EMT 140 Classic Plate Reverb
EMT 250 Classic Electronic Reverb
Hitsville Reverb Chambers
Lexicon 224 Digital Reverb
Lexicon 480L Digital Reverb and Effects
Ocean Way Studios
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler
UAD Sound City Studios
-
Mastering (7)
Capitol Mastering Compressor
Hitsville Mastering EQ
Manley Massive Passive Mastering EQ
Precision K-Stereo Ambience Recovery
Precision Maximizer
Precision Multiband
Precision Limiter
-
Guitar & Bass (9)
Ampeg SVT-VR Classic Bass Amplifier
Bermuda Triangle
Fender ’55 Tweed Deluxe
Marshall Plexi Classic Amplifier
Raw Distortion
TS Overdrive Pedal
UAD Dream ’65 Reverb Amplifier
UAD Lion ’68 Super Lead Amp
UAD Ruby ’63 Top Boost Amplifier
-
LUNA Extensions (4)
LUNA API Summing Extension
LUNA API Vision Console Emulation Extension
LUNA Ampex ATR-102 Mastering Tape Extension
LUNA Studer A800 Multichannel Tape Extensionogistics standards.
