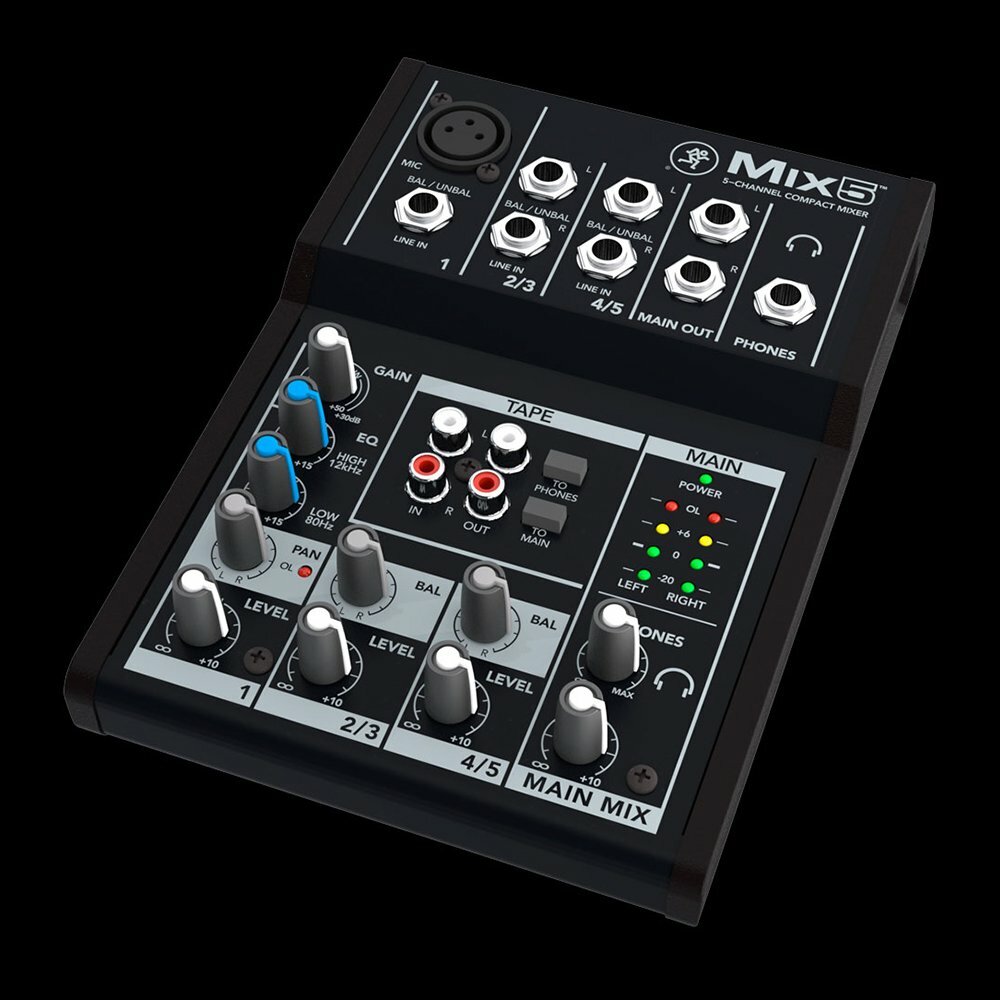

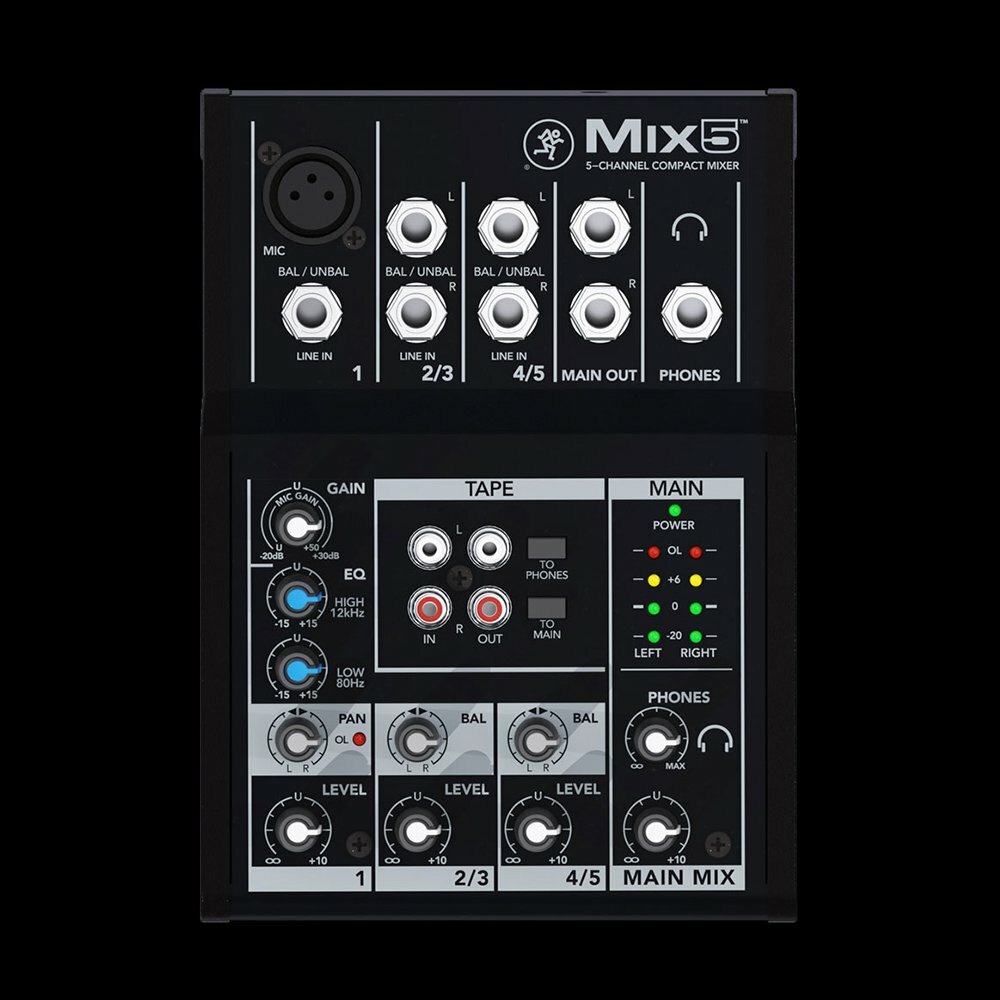

Mackie Mix5 5-Channel Compact Mixer for Studio and Live

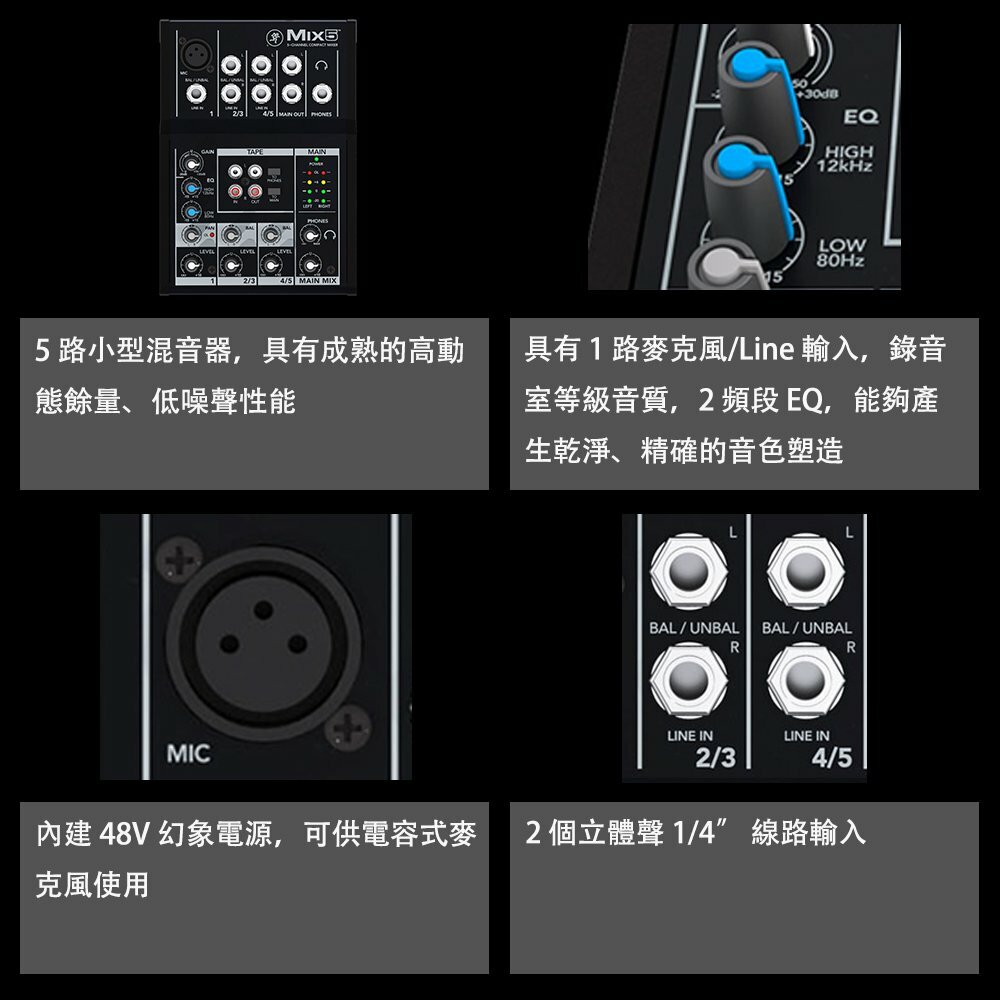

Channel 1: High-Quality Mic/Instrument Input

• Combo Input Jack: Supports standard XLR microphone connectors and 1/4" TRS/TS instrument or line signal connectors.
• Gain Control: Provides precise gain adjustment to accommodate microphones or instruments of different sensitivities, ensuring optimal signal-to-noise ratio.
• 2-Band EQ: Independent High and Low equalizer knobs, offering a +/-15dB adjustment range.
• Pan Control: Adjusts the left/right position of the audio in the stereo field.
• Level Control: Independent volume knob for controlling the volume of this channel in the main mix.

Channel 2/3 & 4/5: Stereo Line Inputs

• 1/4" TRS Inputs: Provides two stereo inputs, each consisting of two 1/4" TRS jacks (L/R), suitable for connecting keyboards, synthesizers, drum machines, or external audio players.
• Balanced/Unbalanced Compatible: Automatically adapts to balanced (TRS) or unbalanced (TS) signal sources.
• Balance Control: Replaces the Pan function, used to adjust the left/right channel balance of the stereo signal.
• Level Control: Also features an independent volume knob for controlling the proportion of each stereo channel in the main mix.

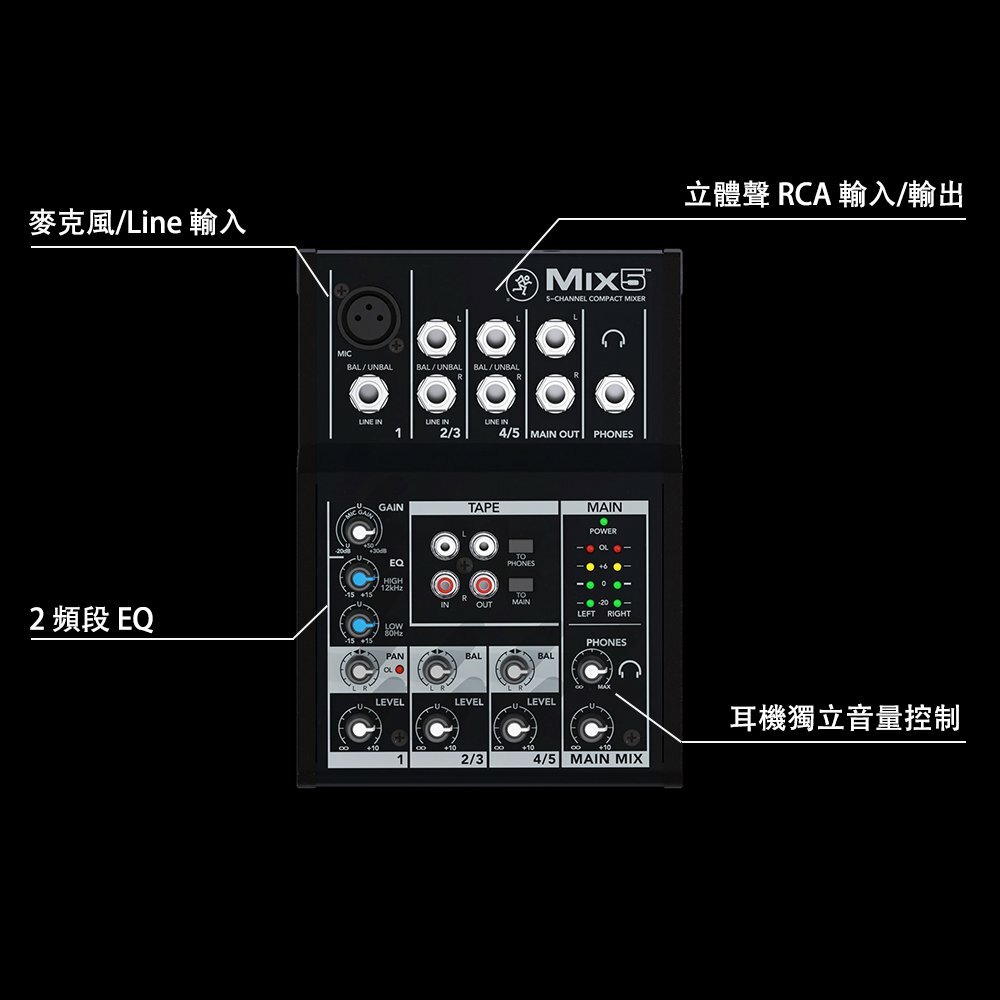

Outputs & Monitoring Control

• Main Out: Provides a pair of 1/4" TRS balanced/unbalanced outputs for connecting main speakers, audio interfaces, or other sound reinforcement equipment.
• Phones Headphone Output: A 1/4" stereo headphone output jack located on the front panel, providing strong drive suitable for monitoring headphones of various impedances.
• Independent Volume Control: Both Main Mix and Phones have independent volume knobs, which can be adjusted separately without affecting each other.
• LED Level Meter: A 4-segment LED display shows the main output volume level, helping users avoid signal overload distortion.

Technical Specifications (Tech Specs)

Mixer Type	Analog Mixer
Total Channels	5
Inputs - Mic Preamp	1 x XLR/TRS Combo (Mic/Line)
Inputs - Line	4 x 1/4" TRS (2 x Stereo Channels)
Inputs - Other	1 x Stereo RCA (Tape In)
Outputs - Main	2 x 1/4" TRS (Main Out L/R)
Outputs - Other	1 x Stereo RCA (Tape Out)
Headphone Output	1 x 1/4" TRS Stereo
Phantom Power	+15V (on Channel 1)
Equalizer (EQ)	2-Band EQ (High @12kHz, Low @80Hz)
Frequency Response	20Hz - 30kHz (+0/-1 dB)
Total Harmonic Distortion (THD+N)	< 0.01% @ +4dBu Output

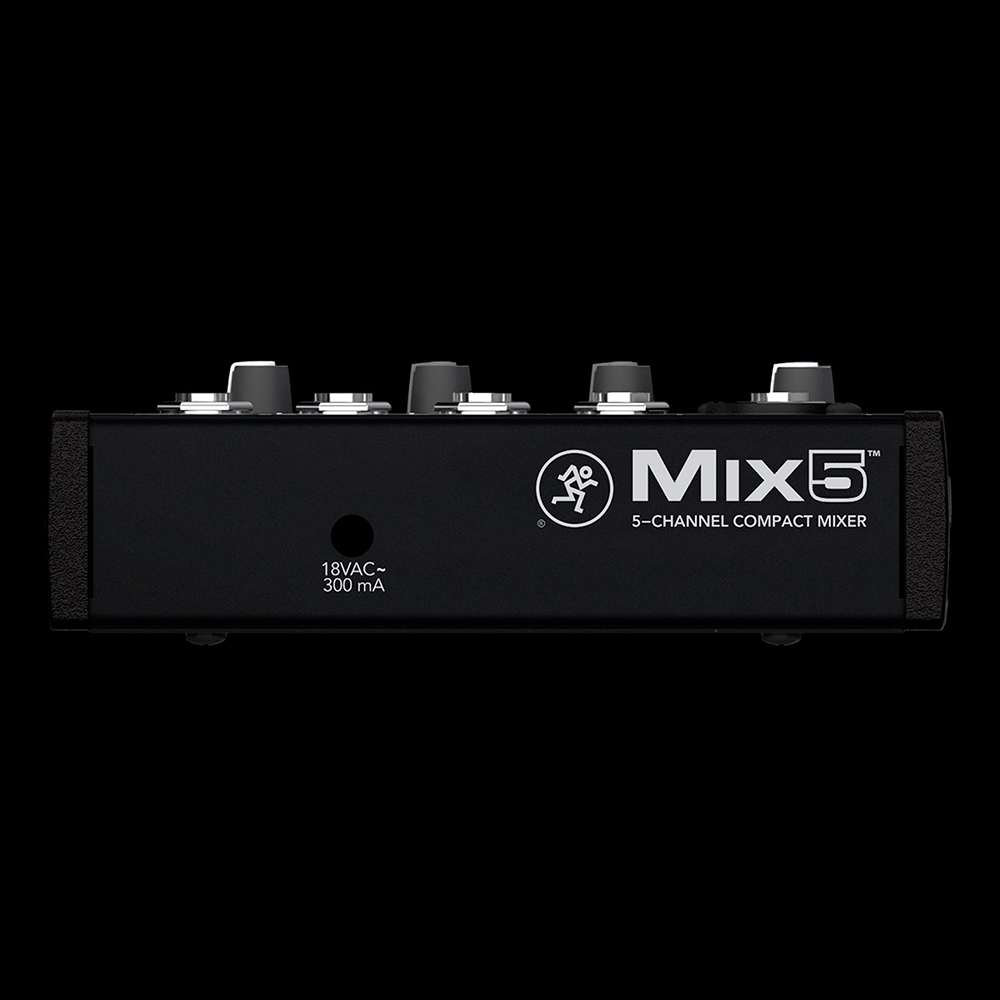

Power Supply	External Power Supply (Included)

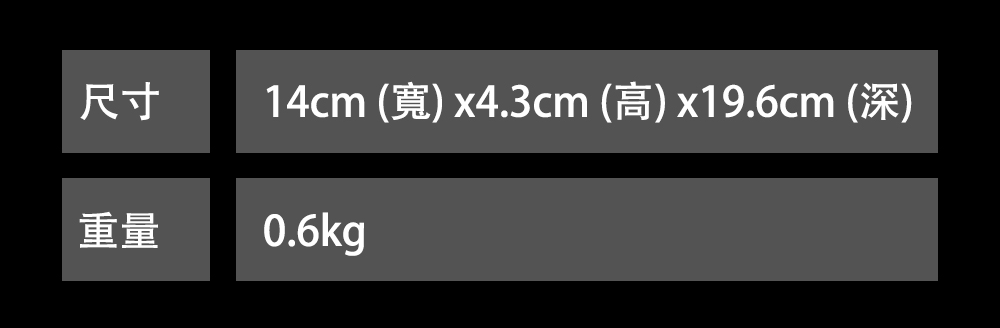

Dimensions (HxWxD)	43 x 140 x 196 mm
Weight	0.6 kg

Q: Can the Mackie Mix5 - 5-channel Compact Mixer connect to condenser microphones?

A: Yes, Channel 1 of the Mix5 features a phantom power switch, which can provide +15V power to condenser microphones that require it, ensuring normal operation.

Q: Can the Mackie Mix5 be used as a USB audio interface to connect directly to a computer?

A: No. The Mix5 is a purely analog mixer and does not have a built-in USB interface. You will need to connect its Main Out to a separate audio interface for computer recording.

Q: What are the advantages of the Mackie Mix5 compared to equivalent products from Behringer?

A: The main advantages of the Mackie Mix5 are its industry-renowned microphone preamp sound quality and its more robust and durable all-metal chassis construction, offering higher long-term reliability.

Q: Is the Mackie Mix5 suitable for live streaming or podcasting beginners?

A: Absolutely. Its operation is extremely intuitive, and it provides high-quality microphone preamps, easily handling single-person recording needs, making it an excellent choice for beginners in podcasting or live streaming.
