TOPPING E70V/BK DAC

• Flagship DAC designed for high-end audiophiles
• Equipped with AKM flagship chip for warm, smooth sound
• Built-in pre-amp, can directly drive active speakers
• Supports LDAC Bluetooth for excellent wireless audio

Bank/ATM Transfer | 1% discount at checkout on order

NT$11,000

products.quantity_limit99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Add to Wishlist

TOPPING E70 Velvet｜High-Performance DAC Decoder with AK4499EX Flagship Chip

Born for Pure Sound Quality, Unveiling Every Detail of Music

The TOPPING E70 Velvet is a high-performance DAC decoder, featuring AKM's flagship AK4499EX DAC chip and the XMOS XU316 USB processor, supporting high-resolution audio formats up to DSD512 and PCM 768kHz. Its core features the latest QCC5125 Bluetooth chip, supporting LDAC Bluetooth transmission, allowing wireless audio to reach Hi-Res levels. Furthermore, the E70 Velvet is not just a pure decoder, but also features high-quality preamplifier functionality, capable of directly connecting to power amplifiers or active speakers.

Compared to most DACs that only offer basic decoding, the E70 Velvet, with its independent low-noise reference voltage power supply design and preamplifier function, provides a cleaner sound background and more flexible system compatibility. Whether for traditional Hi-Fi systems or modern PC-Fi desktop audio, it can serve as the central hub for sound.

Quick Facts Product Overview

Brand: TOPPING
Model: E70 Velvet
DAC Chip: AKM AK4499EX
USB Processor: XMOS XU316
Sample Rate Support: PCM 32bit/768kHz, DSD512
Wireless Transmission: Bluetooth 5.1 (supports LDAC, aptX HD)
Applicable Scenarios: Hi-Fi audio systems, high-end headphone systems, professional monitoring, digital music streaming, PC-Fi desktop audio

Who is the TOPPING E70 Velvet suitable for?

使用者建議分析(點此展開)

▼

適合誰購買

Hi-Fi enthusiasts seeking ultimate sound quality, needing a low-distortion, high-dynamic decoding core.
PC-Fi players who want to connect to a computer via USB for a listening experience far superior to motherboard's built-in audio.
Users with both wired and wireless playback needs, who value its high-quality LDAC Bluetooth functionality.
Users who wish to simplify their audio system by integrating DAC and preamplifier functions into one device.

誰不適合購買

Users who only need headphone output (E70 Velvet does not have a built-in headphone amplifier; an independent headphone amplifier like the L70 is required).
Users whose audio system relies entirely on analog sources and do not need digital-to-analog conversion functionality.

TOPPING E70 Velvet Core Technologies and Features

AKM Flagship AK4499EX DAC Chip: Utilizes AKM's latest VELVET SOUND™ technology, delivering extremely low distortion and noise, presenting a silky smooth, richly detailed sound, with Total Harmonic Distortion plus Noise (THD+N) as low as 0.00006%.
XMOS XU316 USB Processor: Equipped with a 16-core XMOS XU316 processor, providing powerful processing capabilities and stable USB connectivity, supporting high-resolution audio decoding up to DSD512 and PCM 32bit/768kHz.
High-Resolution Bluetooth 5.1 Transmission: Built-in latest Qualcomm QCC5125 chip, supporting multiple high-resolution Bluetooth codecs such as LDAC, aptX Adaptive, aptX HD, AAC, and certified by Hi-Res Audio Wireless, allowing for excellent sound quality even with wireless connections.
Low-Noise Reference Voltage Power Supply: A new low-noise reference voltage power supply specifically designed for the AK4499EX, effectively filtering out power supply noise, suppressing noise levels below 1.3uVrms, providing a pitch-black sound background.
Multi-functional Preamplifier Mode: In addition to the fixed-level output mode for pure DAC use, the E70 Velvet also features a preamplifier mode, allowing precise volume adjustment from -99dB to 0dB, capable of directly driving power amplifiers or active speakers.
Selectable Balanced and Single-Ended Outputs: Offers XLR balanced output and RCA single-ended output, allowing users to choose between XLR only, RCA only, or both simultaneously, adapting to various complex audio system configurations.
12V Trigger Interface: Equipped with 12V Trigger In/Out ports, allowing power linkage with other devices featuring this function (e.g., TOPPING L70 headphone amplifier), enabling one-button synchronized power on/off, enhancing ease of use.
Smart Auto On/Off: The E70 Velvet can automatically detect valid input signals. When a signal is detected, it will automatically power on and switch to that source; if no signal is input for 1 minute, it will automatically enter standby mode.

Preamplifier Function (Preamplifier Mode)

In addition to the fixed-level output DAC mode, the E70 Velvet can also switch to preamplifier mode.
In this mode, you can precisely control the output volume from -99dB to 0dB using the front panel knob or the included remote control.
This feature allows the E70 Velvet to directly connect to power amplifiers or active monitor speakers, saving the budget and space for an additional preamplifier.

High-Resolution Bluetooth 5.1 Wireless Transmission

Utilizes the latest QCC5125 Bluetooth 5.1 chip, supporting mainstream audio codecs such as LDAC / aptX-Adaptive / aptX HD / aptX / AAC / SBC.
To pursue ultimate sound quality, the E70 Velvet bypasses the QCC5125's built-in DAC, directly sending its digital signal to the core AK4499EX for decoding, ensuring optimal reproduction of wireless audio.
Certified by Hi-Res Audio Wireless, providing a stable and high-quality wireless listening experience.

Technical Specifications (Tech Specs)

DAC Chip	AKM AK4499EX
USB Processor	XMOS XU316

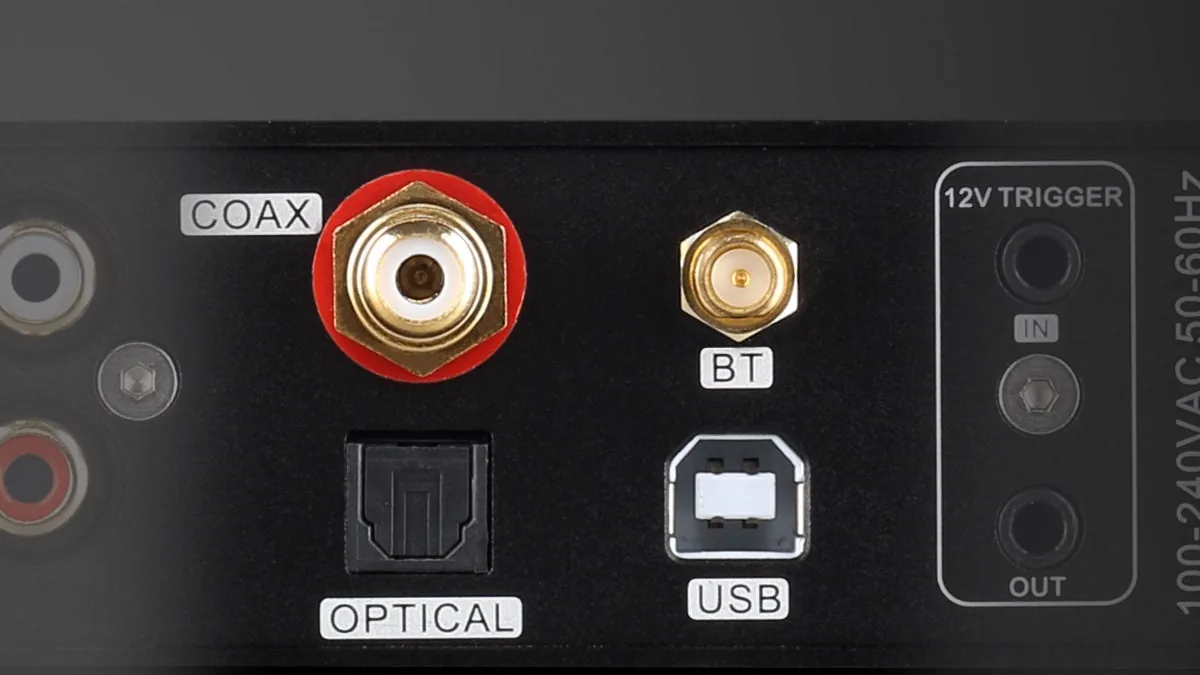

Digital Inputs	USB-B, Optical, Coaxial, Bluetooth

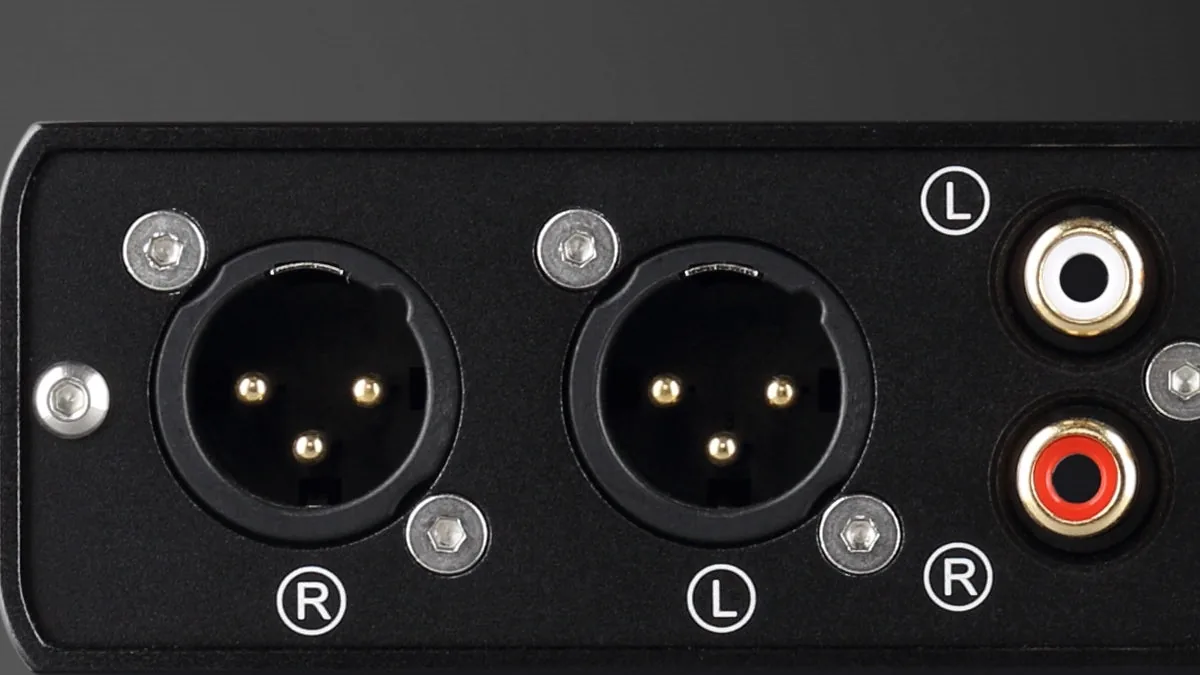

Analog Outputs	1 x XLR (Balanced), 1 x RCA (Single-Ended)
Sample Rate Support (USB)	PCM 32bit/768kHz, DSD512 (Native), DSD256 (DoP)
Sample Rate Support (Optical/Coaxial)	PCM 24bit/192kHz
Bluetooth	Bluetooth 5.1
Bluetooth Codec Support	LDAC, aptX-Adaptive, aptX HD, aptX, AAC, SBC
Total Harmonic Distortion + Noise (THD+N)	<0.00006% @1kHz (XLR); <0.00008% @1kHz (RCA)
Signal-to-Noise Ratio	134dB (XLR); 126dB (RCA)
Dynamic Range	134dB (XLR); 126dB (RCA)
Frequency Response	20Hz - 40kHz (±0.1dB)
Output Level	XLR: 4.2Vrms (4V Mode) / 5.2Vrms (5V Mode) RCA: 2.1Vrms (4V Mode) / 2.6Vrms (5V Mode)
Output Impedance	100Ω (XLR); 50Ω (RCA)
Dimensions	20.0cm x 13.8cm x 4.4cm
Power Source	AC 100-240V 50/60Hz

TOPPING E70V/BK DAC Pros and Cons

Pros & Notes (Click to expand)

▼

Pros

Equipped with AKM's flagship AK4499EX chip, delivering outstanding sound quality and technical specifications.
Supports LDAC high-resolution Bluetooth codec, allowing for near-lossless sound quality even with wireless listening.
Features preamplifier function and adjustable volume, allowing direct connection to power amplifiers or active speakers, offering flexible system pairing.
Rich input/output interfaces (XLR/RCA/USB/Optical/Coaxial), meeting various source connection needs.

Notes to Know

This unit does not have a built-in headphone amplifier function; an independent headphone amplifier is required.
For USB input on Windows systems, official drivers must be installed to achieve full ASIO performance.
The remote control has a narrow reception angle, requiring it to be aimed at the unit during operation.

TOPPING E70V/BK DAC FAQ

Q：Can the TOPPING E70 Velvet with AK4499EX High-Performance DAC be directly connected to active speakers?

▼

A：Yes, the E70 Velvet has a built-in preamplifier mode, allowing volume control via remote or knob to directly drive power amplifiers or active speakers, without the need for an additional preamplifier.

Q：What are the differences between the E70 Velvet and the standard E70?

▼

A：The main difference lies in the DAC chip. The E70 Velvet uses AKM's AK4499EX chip, while the standard E70 uses ESS's ES9028PRO chip. Their sound signatures are slightly different, with the Velvet version offering a warmer and smoother tone.

Q：Do I need to install drivers for the E70 Velvet?

▼

A：It's plug-and-play on Mac, Linux, iOS, or Android systems. For Windows systems, to achieve optimal performance with ASIO output, you will need to install the official Thesycon driver provided by TOPPING.

Q：Is the E70 Velvet's Bluetooth audio quality good?

▼

A：Excellent. It uses the QCC5125 chip and supports LDAC encoding, capable of transmitting 24bit/96kHz audio at up to 990kbps, making it one of the best Bluetooth transmission protocols for audio quality currently available.
