TOPPING E70V/SV DAC

TOPPING E70 Velvet｜High-Performance DAC Decoder with AK4499EX Flagship Chip

Born for Pure Sound Quality, Unlocking Every Detail of Music

The TOPPING E70 Velvet is a high-performance **DAC decoder**, featuring AKM's flagship **AK4499EX** DAC chip and **XMOS XU316** USB processor, supporting high-resolution audio formats up to DSD512 and PCM 768kHz. At its core, it is equipped with the latest QCC5125 **Bluetooth** chip, supporting **LDAC Bluetooth** transmission, allowing wireless audio to achieve Hi-Res quality. Furthermore, the E70 Velvet is not just a pure decoder; it also boasts a high-quality **preamp function**, capable of directly connecting to power amplifiers or active speakers.

Compared to most DACs that only offer basic decoding, the E70 Velvet, through its independent low-noise reference voltage power supply design and preamp amplification function, provides a cleaner sound background and more flexible system compatibility. Whether for traditional Hi-Fi systems or modern PC-Fi desktop audio, it can serve as the central audio hub for your system.

TOPPING E70 Velvet Core Technologies and Features

• AKM Flagship AK4499EX DAC Chip: Utilizes AKM's latest VELVET SOUND™ technology, providing extremely low distortion and noise, delivering a silky smooth, detailed sound, with Total Harmonic Distortion plus Noise (THD+N) as low as 0.00006%.
• XMOS XU316 USB Processor: Equipped with a 16-core XMOS XU316 processor, offering powerful processing capabilities and stable USB connectivity, supporting high-resolution audio decoding up to DSD512 and PCM 32bit/768kHz.
• High-Resolution Bluetooth 5.1 Transmission: Built-in with the latest Qualcomm QCC5125 chip, supporting multiple high-resolution Bluetooth codecs such as LDAC, aptX Adaptive, aptX HD, AAC, and certified with Hi-Res Audio Wireless, allowing for excellent sound quality even with wireless connections.
• Low-Noise Reference Voltage Power Supply: A new low-noise reference voltage power supply specifically designed for the AK4499EX effectively filters out power supply noise, suppressing noise levels below 1.3uVrms, providing a pitch-black sound background.
• Multi-functional Preamp Mode: In addition to the fixed-level output mode for pure DAC use, the E70 Velvet also features a preamp mode, allowing precise volume adjustment from -99dB to 0dB, capable of directly driving power amplifiers or active speakers.

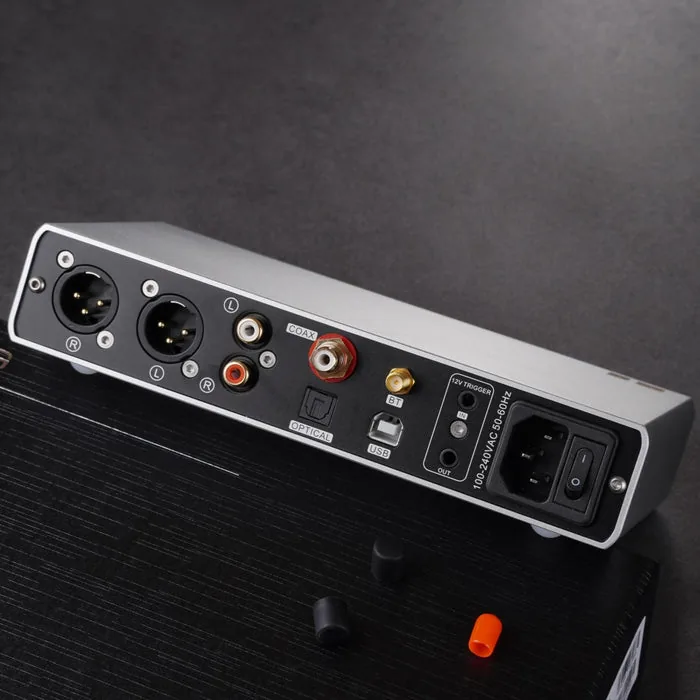

• Selectable Balanced and Single-Ended Outputs: Offers XLR balanced output and RCA single-ended output, allowing users to choose between XLR only, RCA only, or both simultaneously, adapting to various complex audio system configurations.
• 12V Trigger Connector: Features 12V Trigger In/Out connectors, allowing power linkage with other devices that have this function (such as the TOPPING L70 headphone amplifier) for one-button synchronized power on/off, enhancing user convenience.
• Smart Auto On/Off: Automatically detects valid digital signals and powers on, then automatically powers off when the signal disappears, offering both convenience and energy efficiency.
