ZOOM H5studio｜4-track handheld recorder and 32-bit float high-resolution mobile recording solution
Integrates a professional handheld recorder, USB audio interface, and high-resolution mobile recording in one unit
The ZOOM H5studio Handy Recorder is a handheld recorder from ZOOM that uses 32-bit float and dual A/D conversion design, supports recording up to 192kHz, and includes a built-in 4-in/2-out USB audio interface plus a large-diaphragm X/Y stereo microphone module. For users who need to balance location recording, interview capture, music sketching, and desktop recording work, the H5studio offers a complete solution with both high mobility and high fidelity.
Compared with traditional handheld recording devices that can only handle basic field recording, the ZOOM H5studio achieves greater headroom, more flexible signal integration, and a recording workflow closer to studio standards through dual A/D conversion, switchable recording modes, XLR/TRS combo inputs, and USB-C power design. Compared with similar entry-level handheld recorders, its advantages lie in more complete USB audio interface capability, professional preamp configuration, and a deeper operational feature set better suited to formal production.
Quick Facts 產品速覽
品牌：ZOOM
型號：H5studio Handy Recorder
錄音格式：WAV，最高 192kHz，支援 32 位元浮點與 16-/24-bit 模式
同步 I/O：4-in/2-out USB 錄音介面，4 軌同步錄音
接口：2 x XLR/TRS 複合輸入，支援幻象電源
電池續航：最長約 9 小時（4 顆 AA 電池）
適用場景：Podcast 錄製、戶外採訪、樂團排練收音、影片現場錄音、行動音樂創作
Who is the ZOOM H5studio for?
適合誰購買
Content creators who need one device to handle location recording, desktop recording, and USB interface work
Video/audio professionals who frequently record interviews, podcasts, or documentary material and want both mobility and high-resolution sound quality
Users with basic recording knowledge who want to upgrade from an entry-level handheld recorder to more complete signal control and professional input options
誰不適合購買
People who only want to record quick memos on a phone and do not need XLR inputs, a USB interface, or high-resolution file management
Users who already have a complete multitrack field recording system and a separate high-end interface, and do not need a redundant portable setup
ZOOM H5studio core technologies and features
4-track handheld recording architecture: Professional 4-track recording capability, suitable for solo field capture, two-person interviews, ambient sound, and simple music production workflows.
32-bit float recording: Supports 32-bit float mode, preserving more room for post-production adjustment when dealing with large swings in live volume and reducing the risk of clipping and distortion.
16-/24-bit recording modes: In addition to 32-bit float, it also offers 16-bit and 24-bit modes, allowing flexible selection based on project needs, storage strategy, and post-production workflow.
Dual A/D conversion design: Built-in dual A/D converters provide wider dynamic performance and more detailed signal capture, especially suitable for voice, acoustic instruments, and ambient sound with large dynamic changes.
Large-diaphragm X/Y stereo microphone module: Uses a large-diaphragm X/Y stereo pickup configuration that balances stereo spaciousness, clear imaging, and on-the-go convenience, quickly handling most real-time recording scenarios.
Adjustable recording modes: Supports adjustable recording modes, making it easy to switch workflows according to project content and improving efficiency for location work, interviews, and creative documentation.
4-in/2-out USB audio interface: The built-in 4-in/2-out USB audio interface allows it to function not only as a standalone recorder, but also as the audio core for desktop recording and streaming when connected directly to a computer.
2 XLR/TRS combo inputs: Equipped with 2 XLR/TRS combo inputs for dynamic microphones, condenser microphones, line-level signals, or external devices, offering far greater expandability than models with only built-in stereo pickup.
Phantom power support: Both inputs support 48V phantom power, allowing direct use with professional condenser microphones and reducing the need for external power equipment.
F-series microphone preamps: Equipped with F-series microphone preamps for more professional front-end amplification quality and a more stable recording foundation, improving vocal clarity and detail.
Up to 192kHz high-resolution recording: Supports WAV recording up to 192kHz, ideal for users who need high sample rate detail preservation, sound design, or advanced post-production processing.
Independent gain control: Each track has a dedicated gain knob, making it easy to quickly adjust input levels and keeping on-site operation intuitive while reducing the chance of missing critical moments.
Color LCD display: Built-in easy-to-read color LCD with switchable waveform and level meter display, allowing users to monitor signal status and recording headroom in real time on location.
Compatible with Zoom Capsule System 3.0: Supports Zoom Capsule System 3.0, giving the overall pickup system greater modular flexibility and room for future integration.
Voice guidance: Built-in voice guidance improves accessibility and setup efficiency, making it very practical for quick learning and multi-scenario use.
Dual power logic: Can run on 4 AA batteries or via USB-C power, balancing outdoor runtime and long desktop work sessions.
Up to about 9 hours of battery life: With 4 AA batteries, it can provide up to about 9 hours of battery life, suitable for half-day to full-day shoots and interviews.
32-bit float and dual A/D conversion technology
Supports 32-bit float recording, preserving greater flexibility for post-production correction under complex live volume changes.
Dual A/D converters provide wider dynamic performance, helping preserve subtle details and high-SPL transients.
Also supports 16-bit and 24-bit modes, making it easy to switch according to delivery requirements and file management strategy.

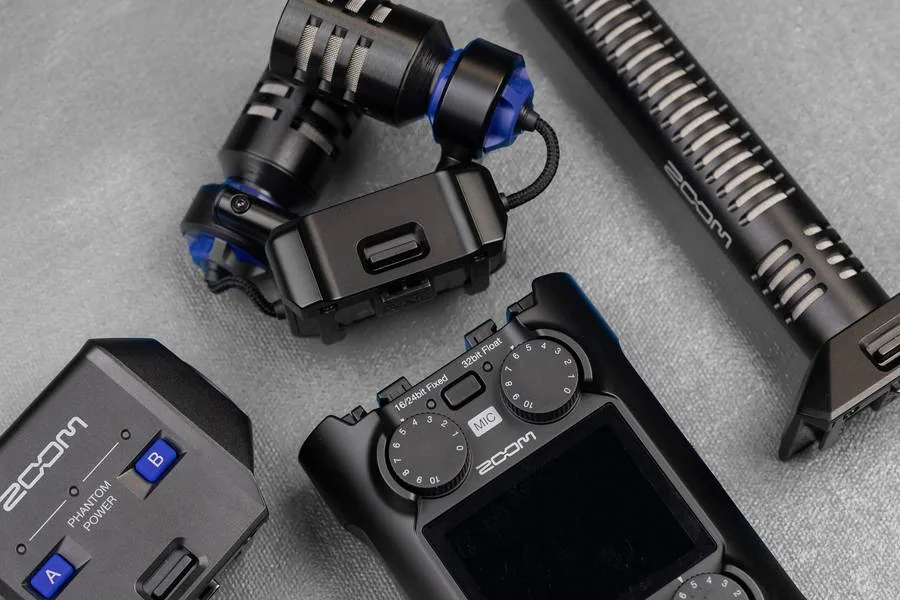

Large-diaphragm X/Y stereo pickup system
The large-diaphragm X/Y stereo microphone module can quickly establish a stable stereo sound field, ideal for ambient sound, performances, and live atmosphere capture.
Compared with a single built-in microphone design, the X/Y configuration is better for maintaining imaging and reducing phase issues.
For creators who need to power on and record immediately, it greatly reduces preparation time before using external microphones.
4-in/2-out USB audio interface functions
The built-in 4-in/2-out USB audio interface can connect directly to a computer for recording, live streaming, voice meetings, or mobile workstation integration.
It combines a handheld recorder and desktop audio interface into one, reducing the need to carry extra gear and simplifying signal routing.
Ideal for creators and engineering users who need to switch quickly between field and indoor work environments.
2 XLR/TRS combo inputs and F-series preamps
The 2 XLR/TRS combo inputs can handle microphones and line-level signals, making the H5studio more than just a handheld recorder, but an expandable recording platform.
Each input supports 48V phantom power, allowing direct use with condenser microphones and meeting interview, voice-over, and instrument recording needs.
The F-series microphone preamps help deliver a cleaner, more stable, and more professional front-end signal.

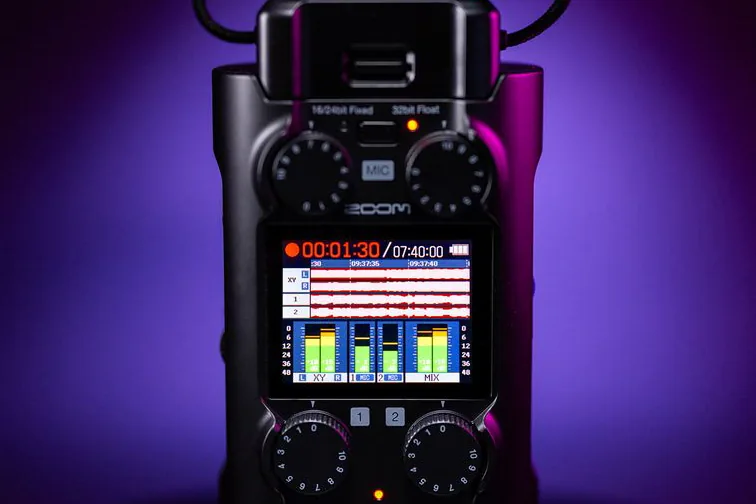

Color LCD and on-site monitoring operation
The color LCD display provides clearer on-site information, improving setup efficiency during field work.
Waveform and level meter display can be switched, allowing users to monitor recording dynamics and instantaneous peak status at the same time.
Combined with independent gain knobs, each track’s input can be quickly fine-tuned without digging through menus.
Mobile power and modular expansion design
Supports 4 AA batteries with up to about 9 hours of runtime, suitable for outdoor interviews, shoots, and mobile creation.
Also offers USB-C power, ideal for long desktop recording sessions, live streaming, or fixed workstation use.
Compatible with Zoom Capsule System 3.0, giving the system greater flexibility for future pickup module integration.
Technical Specs
品牌
ZOOM
型號
H5studio Handy Recorder
產品類型
4-track handheld recorder / USB audio interface
Pickup Mode
X/Y stereo pickup, adjustable recording mode
A/D 解析度
Dual A/D converters
位元深度
Supports 32-bit float, 16-bit, 24-bit
取樣率
Up to 192kHz
錄音格式
WAV
同步 I/O
4-in/2-out
類比輸入
2 x XLR/TRS combo inputs
幻象電源
Supports 48V
麥克風前級
F-series microphone preamps
電腦連接
USB
USB 介面
USB-C
顯示螢幕
Color LCD, supports waveform / level meter display switching
電源
4 x AA batteries or USB-C power
電池續航
Up to about 9 hours
其他功能
Compatible with Zoom Capsule System 3.0, voice guidance, independent gain knobs
保固
2 years (per reference page information)
ZOOM H5studio Handy Pros and Cons
Pros
Integrates a handheld recorder, 4-in/2-out USB audio interface, and external microphone expansion capability
Supports 32-bit float, 16-bit, 24-bit, and up to 192kHz, offering high recording flexibility
Built-in large-diaphragm X/Y microphones and dual A/D conversion balance convenience and detail performance
2 XLR/TRS combo inputs with 48V phantom power can accommodate more complete professional gear
Color LCD, independent gain knobs, and USB-C power design provide efficient on-site operation
Notes to Know
To fully use the XLR/TRS inputs and USB interface, you need a basic understanding of recording signal flow
When using the up-to-about-9-hour battery life, actual runtime still depends on recording format, power method, and working environment
If working long hours with condenser microphones and high-resolution modes, it is recommended to plan for battery or USB-C external power at the same time
ZOOM H5studio Handy FAQ
A：Yes. The H5studio has a built-in 4-in/2-out USB audio interface and can connect directly to a computer for recording.
A：Yes. The H5studio supports 32-bit float and can also switch to 16-bit and 24-bit modes.
A：The H5studio adds dual A/D, XLR/TRS inputs, and a USB interface, offering greater production flexibility.
A：Yes. The built-in stereo microphones plus two external inputs can handle multi-person voice recording.
A：Yes. If you need location recording plus USB interface integration, the H5studio is more durable than entry-level models.
