ZOOM R20 MultiTrak

ZOOM R20 MultiTrak｜16-Track Multitrack Recording Workstation and Audio Interface Control Center

A Touchscreen Recording Workstation That Integrates Multitrack Recording, Mixing, and Control

ZOOM R20 MultiTrak is a 16-track multitrack recording workstation from ZOOM that combines recorder, editing station, mixer, and audio interface functions, featuring a 4.3-inch full-color LCD touchscreen, 8 XLR inputs, and support for direct recording to SDHC / SDXC storage media up to 1TB.

For creators who want to break free from the complexity of computer-based recording workflows, the R20 condenses a multitrack recorder, audio interface, mixing workstation, and essential production tools into a single unit. Compared with traditional setups that rely on a computer, DAW, external controllers, and multiple software plug-ins, the ZOOM R20 MultiTrak delivers a more direct and accessible music production workflow through touchscreen operation, a built-in rhythm system, MFX processing, and MIDI functionality.

Quick Facts Product Overview

Brand: ZOOM
Model: R20 MultiTrak
Channel Support: 16-track multitrack recording
Display: 4.3-inch full-color LCD touchscreen
Analog Inputs: 8 XLR inputs, 2 of which also support line input
Storage Media: SDHC / SDXC, supports up to 1TB
Recommended Applications: Home recording, band demo production, podcast recording, song arrangement drafts, mobile mixing work

Who Should Buy the ZOOM R20?

使用者建議分析(點此展開)

▼

適合誰購買

Home recording musicians who want one device for recording, editing, and mixing without building a complex computer recording system from the start
Band creators who need to handle vocals, guitar, keyboards, and drums at the same time and want to quickly produce demos or pre-production recordings
Users who prefer visual operation and want to improve workflow efficiency through a color touchscreen interface and color-coded controls
Content creators who need a standalone recording workstation and want to complete multitrack productions reliably even without a DAW

誰不適合購買

Users who already have a complete high-end audio interface, controller, and DAW system, and whose main need is not a standalone workstation workflow
People who only want to record solo voiceover or simple stereo content and may not need 16 tracks and multi-channel control
Beginners on a tight budget who only want to try the most basic recording functions first and may feel the R20 offers more integration than they currently need

ZOOM R20 MultiTrak Core Technologies and Features

16-track multitrack recording workstation architecture: Integrates recording, editing, mixing, and control functions, making it suitable for everything from song drafts and band rehearsal capture to full demo production.
4.3-inch full-color LCD touchscreen operation: Navigate, edit, and mix through the touchscreen with an intuitive operating logic that lowers the learning curve for multitrack recording.
Color-coded channel workflow: On-screen tracks, channel gain controls, and faders use matching color design to improve quick identification and hands-on operating efficiency.
8 XLR input configuration: Handles multiple microphone recording needs at once, ideal for vocals, acoustic guitar, piano, amplifiers, drums, and other multi-source recording.
Dual-purpose input design: Two of the eight inputs can also be used as line inputs, providing more flexible integration for instruments and external signals.
Hi-Z high-impedance input: Channel 1 supports Hi-Z for direct connection of electric guitar or bass without requiring an external DI box.
Phantom Power support: Channels 5 through 8 provide Phantom Power, making it convenient to use condenser microphones for vocals, acoustic guitar, or ambient recording.
Built-in rhythm system: Offers 150 rhythm patterns and song structures across 30 styles, allowing creators to quickly build drum foundations and arrangement frameworks.
MIDI creative expansion: Connect a MIDI keyboard and use 18 built-in synthesizer tones to make melodies, pads, bass lines, and harmony sketches easier to create.
MIDI file import: Import MIDI files to incorporate external melodies, bass lines, and other arrangement elements into your project workflow.
Built-in EQ and Compression: Complete basic tone shaping and dynamic processing directly within the workstation without relying on external software for every step.
Integrated MFX processor: Provides full MFX effects processing capability for greater flexibility in mixing and sound shaping.
Guitar Lab compatibility: The MFX processor works with Guitar Lab software, making it especially useful for guitar creators and tone adjustment needs.
Complete monitoring outputs: Includes a headphone output and dedicated monitor outputs for long recording sessions, playback, and mixing decisions.
Direct recording to SDHC / SDXC: Supports storage media up to 1TB, reducing reliance on computers and external hard drives while improving project storage and mobile recording convenience.
Locking AC power design: The locking AC adapter helps prevent accidental disconnection, reducing recording interruptions and file risk.
VoiceOver Gesture assisted operation: Provides voice assistance and accessibility-oriented operation concepts, making workstation functions easier for visually impaired users to use.
Mobile wireless control expansion: With a compatible Bluetooth adapter, it can be operated through a wireless iOS control app for greater remote recording and control flexibility.

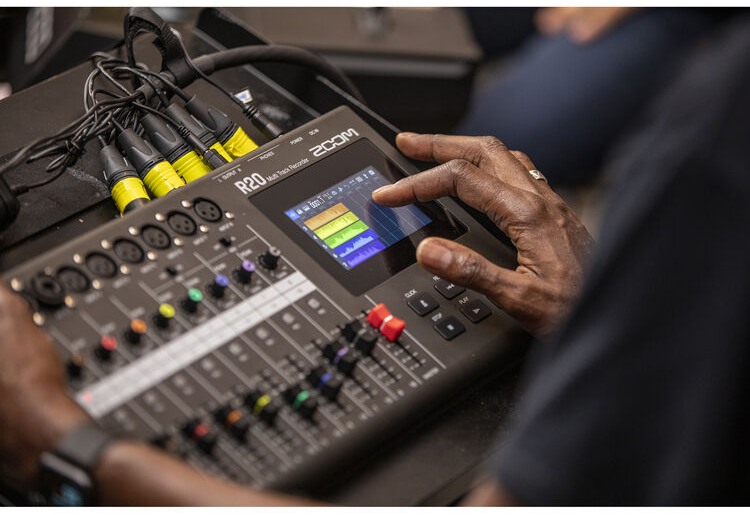

4.3-Inch Color Touchscreen Recording Workflow

The color LCD touchscreen allows direct track management, editing, and mixing operations, reducing the inconvenience of navigating through layered menus.
Track colors on the screen correspond to the physical gain and fader controls, which is especially helpful for multitrack recording and quick corrections.

8-Channel Input and Flexible Direct Instrument Recording

Eight XLR inputs can simultaneously handle multiple microphones and instruments, making them suitable for personal recording and small-ensemble production.
Two of them can also function as line inputs, and Channel 1 provides Hi-Z, allowing guitar and bass to be recorded directly into the system.

Built-in Rhythm Machine and 18 Synth Tones

Built-in 150 rhythm patterns and song structures across 30 music styles let you quickly build drum references and arrangement skeletons.
After connecting a MIDI keyboard, you can use 18 built-in synthesizer tones, ideal for creating melodies, pads, bass, and arrangement drafts.

Built-in EQ, Compression, and MFX Processing

The R20 includes EQ, Compression, and other processing functions, allowing basic tone shaping directly during recording and mixing.
The MFX processor expands sound-shaping possibilities and supports use with Guitar Lab for more efficient guitar tone integration.

Standalone Storage and Remote Control Capability

Can record directly to SDHC / SDXC storage media with support up to 1TB, making it ideal for long projects and workflows that do not depend on a computer.

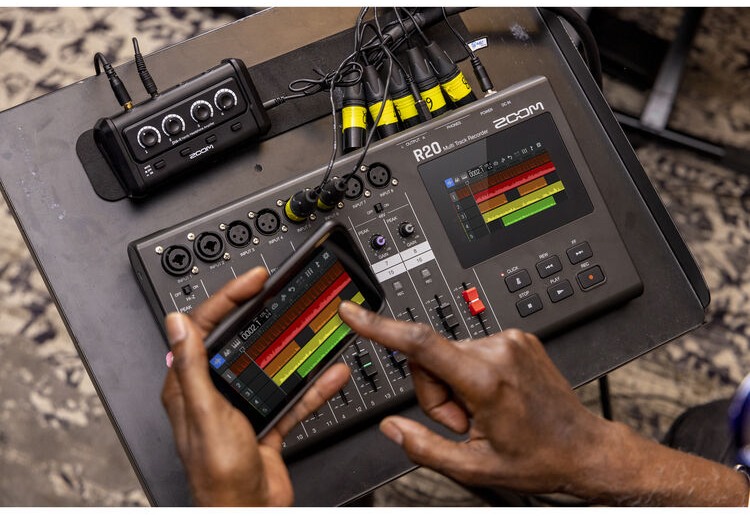

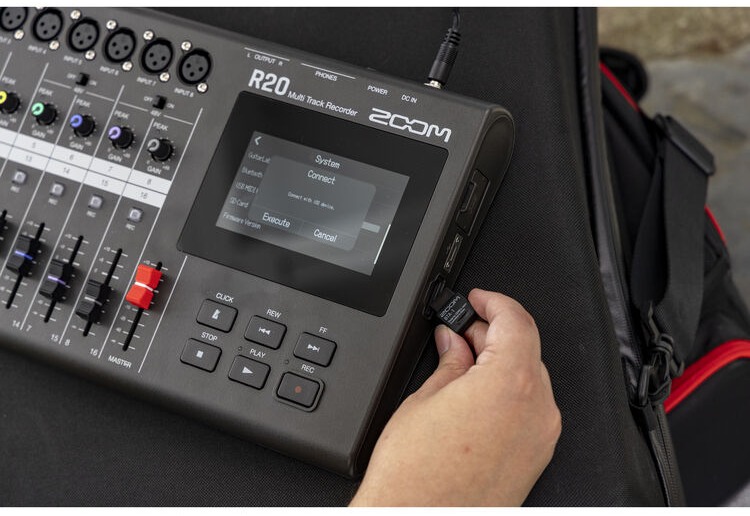

With a compatible Bluetooth adapter, it can be operated through a wireless iOS control app, making control convenient from different positions in the studio.

Technical Specifications (Tech Specs)

Brand	ZOOM
Model	R20 MultiTrak
Product Type	Multitrack recording workstation / audio interface / control workstation
Channel Support	16 tracks
Display	4.3-inch full-color LCD touchscreen
Analog Inputs	8 x XLR, 2 of which also support line input
Hi-Z	Supported on Channel 1
Phantom Power	Supported on Channels 5–8
MIDI	Supports MIDI keyboard connection and MIDI file import
Built-in Rhythms	150 rhythm patterns / song structures, 30 styles
Built-in Tones	18 synthesizer tones
Built-in Processing	EQ, Compression, MFX
Headphone Output	Included
Analog Outputs	Includes monitor outputs
Storage Media	SDHC / SDXC
Storage Capacity Support	Up to 1TB
Mobile App Compatibility	Can be operated via a wireless iOS control app with a compatible Bluetooth adapter
Power Source	Locking AC power adapter
Accessibility Operation	VoiceOver Gesture voice-assisted operation

ZOOM R20 MultiTrak Pros and Cons

Pros & Notes (Click to expand)

▼

Pros

Integrates 16-track recording, editing, mixing, and control functions, ideal for creators who do not want to rely on a computer
4.3-inch full-color touchscreen with color-coded channels offers intuitive operation and efficient multitrack identification
8 XLR inputs, Hi-Z, and Phantom Power provide a complete setup for vocals and various instrument recording needs
Built-in 150 rhythm patterns, 30 styles, and 18 synthesizer tones help speed up arranging and demo production
Supports SDHC / SDXC storage media up to 1TB for more secure project storage and long recording sessions

Notes to Know

Wireless control requires a compatible Bluetooth adapter and is not built-in Bluetooth on the unit itself
Phantom Power is only available on Channels 5–8, so channel allocation should be confirmed in advance when using multiple condenser microphones
This unit is designed around a standalone workstation workflow, so users accustomed to deep editing in a full DAW should evaluate the workflow differences

ZOOM R20 MultiTrak FAQ

Q：Can the ZOOM R20 MultiTrak record directly without connecting to a computer?

▼

A：Yes, the R20 can record directly to SDHC / SDXC storage media and is designed around a standalone multitrack workstation workflow.

Q：Is the R20 suitable for band demos or drum recording?

▼

A：Yes, its 8 inputs can handle multiple microphones and instruments at the same time, making it suitable for small-ensemble multitrack recording.

Q：How is the R20 different from traditional computer DAW recording?

▼

A：The difference is in the workflow: the R20 emphasizes instant-on recording and touchscreen operation, while a DAW offers deeper post-production flexibility.

Q：Can the R20 record electric guitar directly?

▼

A：Yes, Channel 1 supports Hi-Z, allowing direct recording from electric guitar or bass.

Q：Is the R20 a good first multitrack recording workstation for beginners?

▼

A：Yes, if you want to avoid a complex DAW setup, the R20’s integrated operation is very beginner-friendly.
